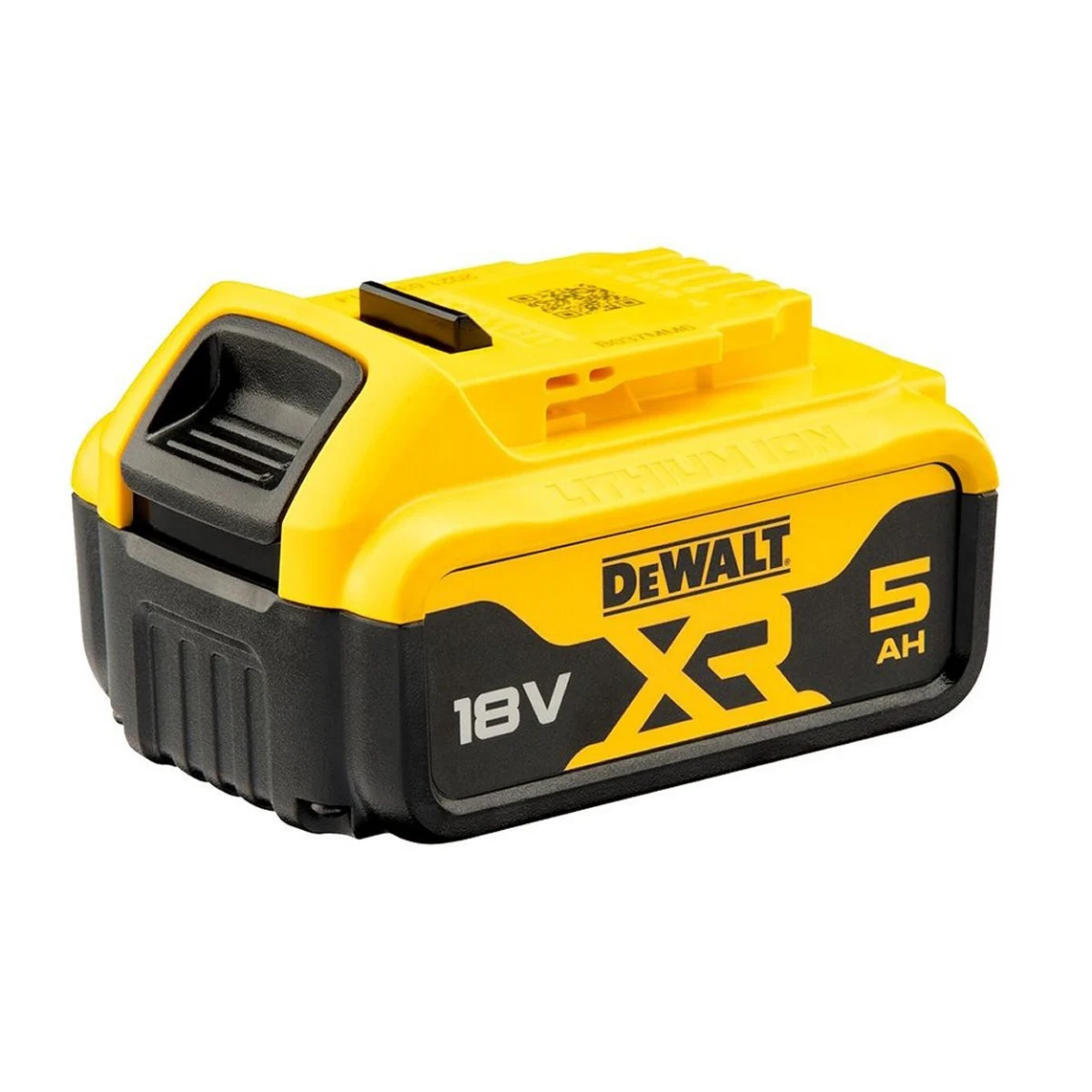

DEWALT DEWKIT25A POWER TOOL KIT 4 X 18V X 5AH LITHIUM BATTERIES 25PCE

DEWALT DEWKIT25A POWER TOOL KIT

TECHNICAL SPECIFICATION OF 18V DEWALT DCD996 COMBI DRILL

• 18v Combi Drill
• Brushless high powered motor
• 3 speed all metal transmission
• No load speeds 0 to 450rpm. 0 to 1300rpm and 0 to 2000rpm
• Beats per minute 0 to 8600bpm. 0 to 25500bpm and 0 to 38250bpm
• Maximum torque hard 95Nm. soft 66Nm
• 3 position LED torch high. medium and low settings
• 11 position adjustable torque electronic clutch
• Efficient intelligent trigger
• 13mm ratcheting keyless chuck with auto spindle lock
• Chuck capacity 1.5mm to 13mm
• Maximum drilling through wood 55m
• Maximum drilling through metal 13mm
• Maximum drilling capacity through masonry 16mm
• Improved grip design
• Steel belt clip and magnetic bit holder
• Size l x h x w 215mm x 210mm x 70mm
• Weight 1.7kgs

TECHNICAL SPECIFICATION OF 18V DEWALT DCF887 IMPACT DRIVER

• 18v Impact Driver
• Brushless motor technology
• 3 speed tough motor
• No load speeds 0 to 1000rpm. 0 to 2800rpm. 0 to 3250rpm
• Impacts per minute 0 to 3800ipm
• Maximum torque 205Nm
• x3 LED HALO work light
• Drop in 1/4 bit holder
• Precision Drive mode
• Belt hook
• Magnetic bit holder
• Size l x h 135mm x 225mm
• Weight 1.4kgs

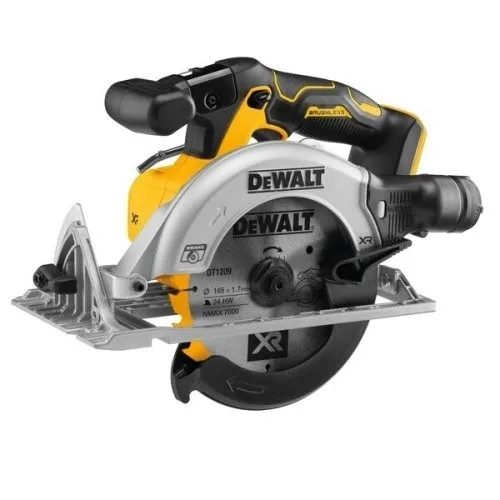

TECHNICAL SPECIFICATION OF 18V DEWALT DCS565 CIRCULAR SAW

• 18v Circular Saw
• Brushless motor technology
• No load speed 4950rpm
• 24 tooth TCT blade
• Blade diameter 165mm x 20mm bore
• Ultra thin kerf
• 50 degree bevel capacity
• 55mm depth of cut at 90 degrees
• 42mm depth of cut at 45 degrees
• Lock-off switch
• Electronic motor brake
• Cast aluminium base
• Optimum balance for fatigue free operation
• Bright LED work light improves cutline visibility
• Rafter hook
• Dust blower clears cut line
• Additional handle for two handed work
• Rip fence
• Hex key
• Dust extraction spout
• Size h x l 175mm x 315mm

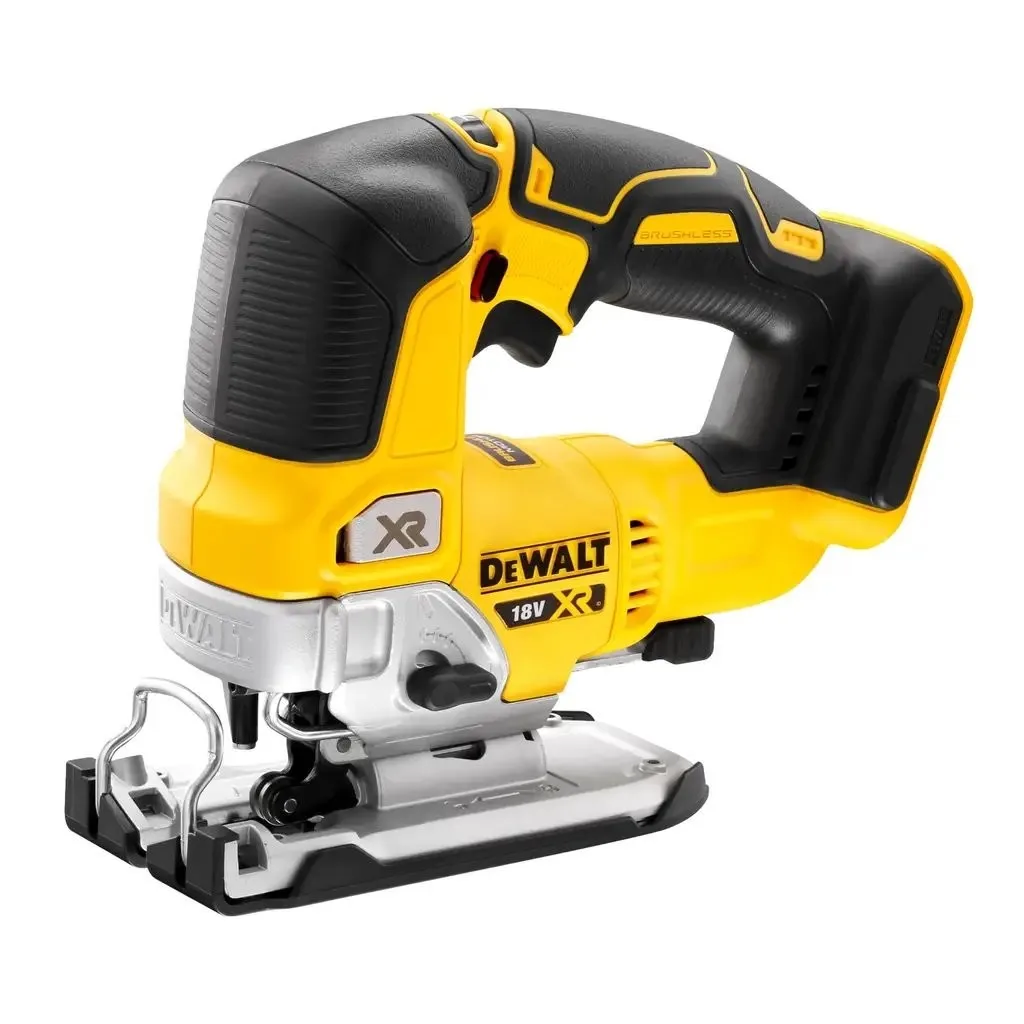

TECHNICAL SPECIFICATION OF 18V DEWALT DCS334 JIGSAW

• 18v Jigsaw
• Tough brushless motor
• No load speed 3200rpm
• Maximum cutting capacity through wood 135mm
• Maximum cutting capacity through aluminium 25mm
• Bevel capacity 47 degrees
• Weight 2.7kgs

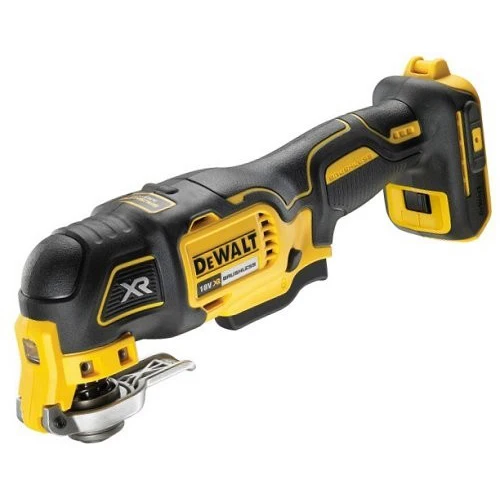

TECHNICAL SPECIFICATION OF 18V DEWALT DCS356 OSCILLATING TOOL

• 18v Multi Tool
• DeWALT brushless motor
• Oscillations per minute 0 to 20000rpm
• Oscillating angle 1.6 degrees
• 3 stage speed control
• Bright LED work light
• Variable speed trigger control
• 3 stage speed control
• New fork design reducing weight and improving distribution
• Universal adapter
• Tool-free blade changes
• Dual grip with overmould
• Weight 1kgs

TECHNICAL SPECIFICATION OF 18V DEWALT DCL040 PIVOT TORCH

• 18v LED Torch
• Bulb type LED
• Run time with 3Ah is 12hrs
• 10000 hrs bulb life
• 110 lumens
• Integrated hanging hook
• Belt clip and magnetic compatible
• Rubber grip
• Size h x l 240mm x 115mm
• Weight 0.26kgs

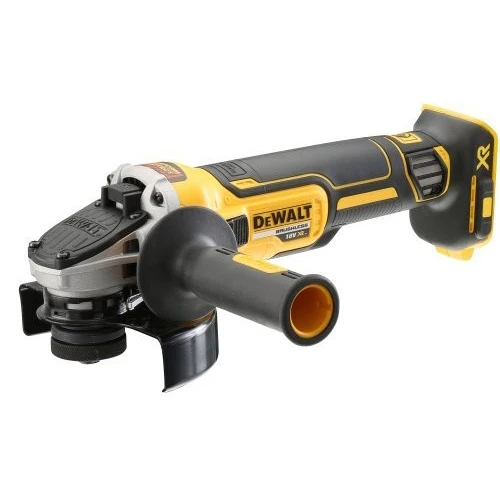

TECHNICAL SPECIFICATION OF 18V DEWALT DCG405 ANGLE GRINDER

• 18v Angle Grinder
• Brushless motor technology
• No load speed 9000rpm
• Maximum disc diameter 125mm
• Electronic brake
• Electronic clutch
• Mesh motor covers
• Rubber overmould
• 2 position side handle
• Keyless protective guard
• 310mm long
• Weight 1.4kgs

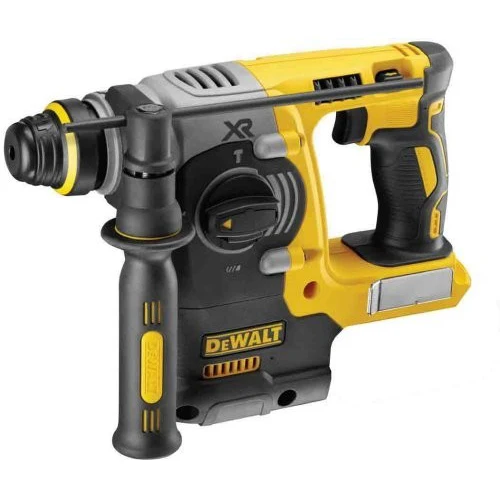

TECHNICAL SPECIFICATION OF 18V DEWALT DCH273 SDS-PLUS HAMMER DRILL

• 18v SDS-Plus Hammer Drill
• Brushless motor technology
• No load speed 0 to 1100rpm
• Blows per minute 0 to 4600bpm
• Impact energy 2.1jls
• Rotation stop mode
• Impact stop mode
• Electronic clutch
• SDS-Plus chuck
• Maximum drilling capacity in wood 26mm
• Maximum drilling capacity in metal 13mm
• Maximum drilling capacity in concrete 24mm
• Bright white LED work light
• Multi position side handle
• Belt hook
• Compact lightweight ergonomic design
• Size l x h x w 300mm x 200mm x 85mm
• Weight 2.6kgs

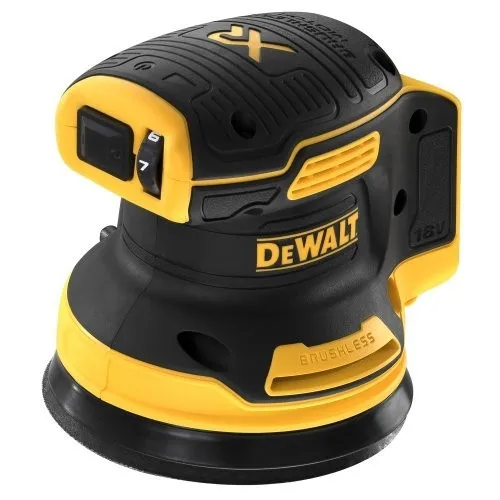

TECHNICAL SPECIFICATION OF 18V DEWALT DCW210 ORBITAL SANDER

• 18v Orbital Sander
• 18v brushless motor
• Random orbit sander
• Extended run time and tool life
• Quick change hook and loop pad
• Sealed switch gear preventing dust infiltration
• Easy reach speed dial
• Soft grip from increased safety and comfort
• DeWALT AirLock system for efficient dust extraction
• Dust bag
• Weight 1.3kgs

TECHNICAL SPECIFICATION OF 18V DEWALT DCS367 RECIPROCATING SAW

• 18v Reciprocating Saw
• Brushless motor
• No battery or box supplied
• No load stroke rate 0 to 2900spm
• Stroke length 28.6mm
• 4 position blade clamp for flush cutting
• Lever action tool-free blade change
• Improved handling due to central motor position
• Bright LED worklight
• Compact allowing access to tight working areas
• Maximum cut through wood 300mm
• Maximum cut through steel sections and pipes 100mm
• Maximum cut through PVC 160mm
• Size l x h 365mm x 200mm
• Weight 2.3kgs

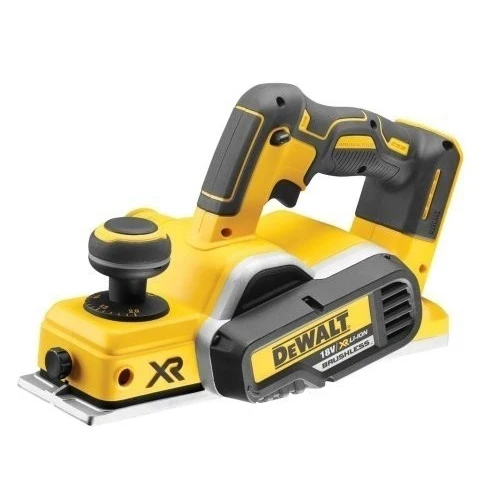

SPECIFICATION OF 18V DEWALT DCP580 PLANER

• 18v Planer
• Brushless motor
• 82mm reversible twin blades
• 9mm rebate capacity
• Fine adjustment
• 2mm depth of cut
• Compact well balanced body
• Foot lock-off
• Air lock port
• On-board blade storage
• On-board torx key
• Weight 1.4kgs

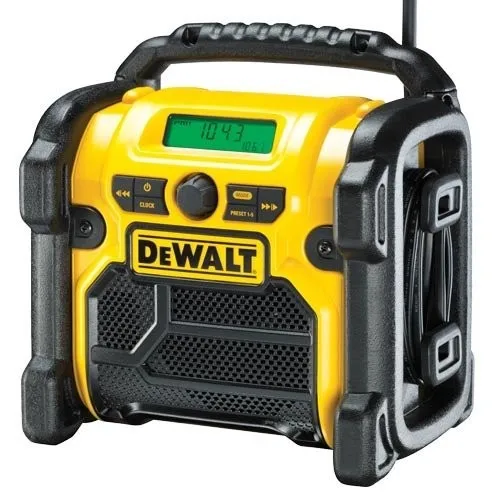

TECHNICAL SPECIFICATION OF DEWALT DCR020 RADIO

• Integral roll-cage
• DAB and FM frequencies
• Powered through 12v or 18v XR li-ion batteries
• 1.8mtr power cord
• Wrap round cord storage
• Tech Box for on-board storage
• 3.5mm auxiliary port
• USB charging port
• Size l x h 240mm x 245mm
• Weight 2.8kgs

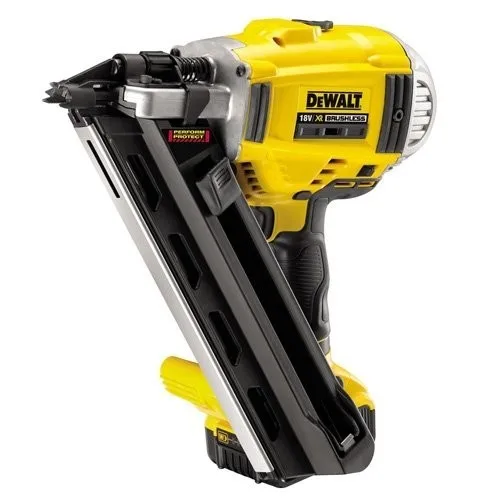

TECHNICAL SPECIFICATION OF 18V DEWALT DCN692 FRAMING NAILER

• 18v Framing Nailer
• Brushless motor technology
• Two speeds/power levels
• Sequential and bump firing modes
• Fully mechanical operation
• Impact rate 105jls
• Selective operating mode
• Rear loading magazine
• Magazine capacity up to 55 nails
• Easy thumb wheel depth adjustment
• Nail length 50mm to 90mm
• Nail diameters 2.8mm to 3.3mm
• Magazine angle 30 to 34 degrees
• Working temperature range -20C to 50C
• Jam clearing
• Fault indicator
• Integrated belt hook
• Size l x w x h 345mm x 125mm x 340mm
• Weight 3.7kgs

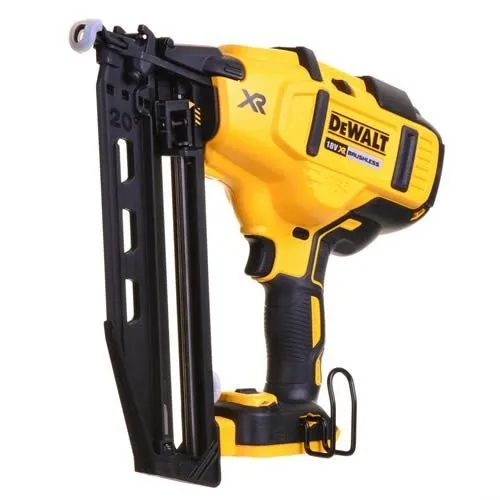

TECHNICAL SPECIFICATION OF 18V DEWALT DCN660 FINISH NAILER

• 18v Framing Nailer
• Brushless motor technology
• Bump and sequential trigger type
• Nail length 32mm to 63mm
• Nail diameter 1.6mm (16 gauge)
• Thumb wheel depth adjuster
• Magazine angle 20 degrees
• Rear loading magazine
• Magazine capacity 110 nails
• Fault indicator
• Integrated belt hook
• Tool free jam clearing
• Temperature range -20 to +50C
• Size l x w x h 310mm x 95mm x 325mm
• Weight 2.7kgs

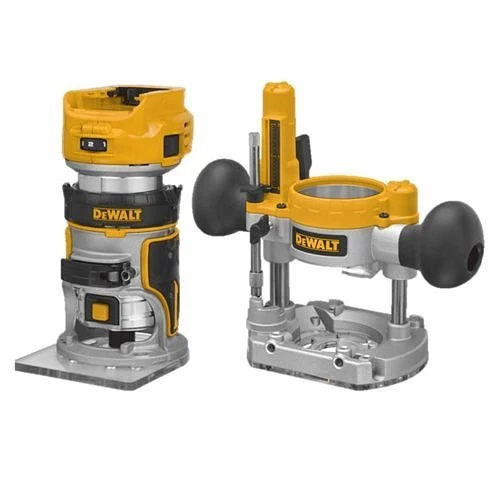

TECHNICAL SPECIFICATION OF 18V DEWALT DCW604 FIXED BASE ROUTER

• 18v Router
• Router body with plunge base
• Variable speed control
• Plunge stroke 55mm
• Maximum cutter diameter 30mm
• 5 position adjustable turret
• Aluminium motor housing
• Fixed base
• 1/4 collet
• 17mm guide bush
• Spindle lock
• Electronic brake
• Parallel fence with guide rods (plunge body)
• Basic parallel fence (fixed base)
• Centering cone
• Dust extraction fixed base
• Dust extraction plunge base
• Rubber overmould grips
• 17mm spanner

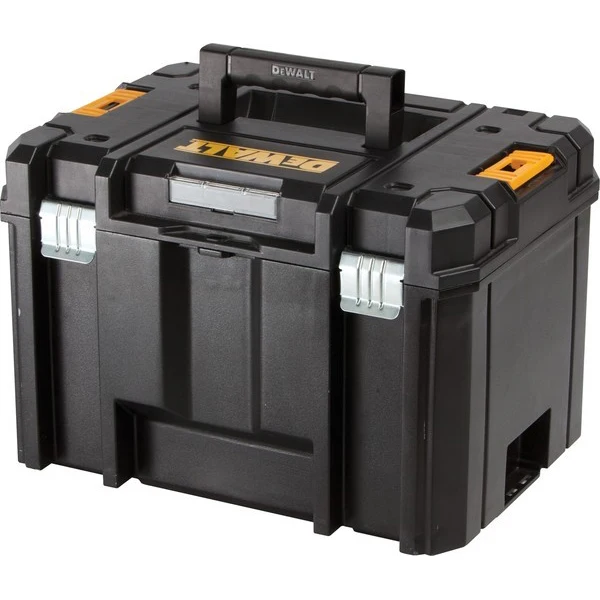

• DeWALT TSTAK case
• Weight 6kgs

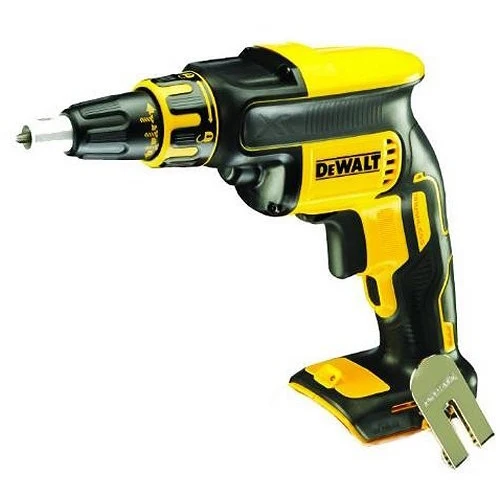

TECHNICAL SPECIFICATION OF 18V DCF620 DRYWALL SCREWDRIVER

• 18v Drywall Screwdriver
• Brushless motor technology
• No load speed 0 to 4400rpm
• Maximum torque 5Nm to 30Nm
• Trigger lock
• Single screw locking nose cone
• Easy opening for quick cleaning
• Tool free depth control
• Fine depth control
• Rotating collated screw magazine
• LED worklight
• Set and forget feature
• Ergonomically designed rubber grip
• Angled belt hook
• Head length 335mm
• Size l x h 380mm x 235mm
• Weight 1.6kgs

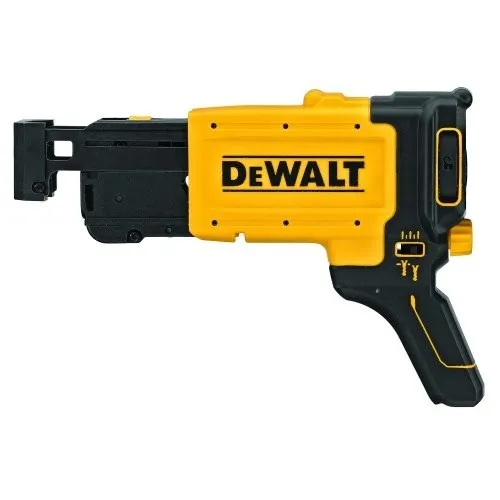

TECHNICAL SPECIFICATION OF DEWALT DCF6202 COLLATED ATTACHMENT

• Upgraded collated magazine
• Improved corner access
• Magazine accepts 25mm to 57mm collated screws
• Collated screw magazine rotates on the tool without removal
• Slim design allows better corner access
• Tool free depth control
• Robust jobsite tough
• Quick cleaning of drywall dust
• Supplied with 156mm Phillips screwdriver bit
• Overall length 216mm

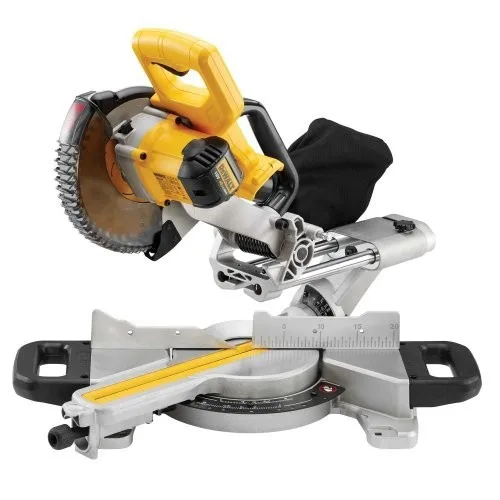

TECHNICAL SPECIFICATION OF 18V DEWALT DCS365 MITRE SAW

• 18v Mitre Saw
• No load blade speed 3750rpm
• Blade 184mm x 16mm bore
• Approximate 200 cuts per charge soft wood 75mm x 50mm
• Approximate 320 cuts per charge MDF skirting 18mm x 119mm
• Bevel capacity 48 degrees
• Mitre capacity right and left 48 degrees
• Mitre and bevel angle detents for quick and easy setting
• Large dual fence sliding mechanism
• Horizontal rails
• Cutting capacity at 90/90 degrees (w x h) 250mm x 50mm
• Cutting capacity at 45/90 degrees (w x h) 176mm x 50mm
• Cutting capacity at 90/45 degrees (w x h) 250mm x 35mm
• Cutting capacity at 45/45 degrees (w x h) 176mm x 35mm
• XPS shadow line indicator
• Rigid lightweight aluminium base
• Full dust control including dust bag
• Size d x l x h 590mm x 490mm x 590mm
• Weight 11.5kgs

TECHNICAL SPECIFICATION OF 18V DEWALT DCF891 IMPACT WRENCH

• 18v Impact Wrench
• Brushless motor technology
• Optimised impact mechanism
• Breakaway torque 1152Nm
• Fastening torque 812Nm
• Variable speed trigger
• Tactile 4 mode select feature with precision wrench
• 1/2 square anvil with hog ring
• Super bright adjustable LED
• Compact head design 175mm
• Ultra compact lightweight design
• Comfortable rubber grip and switch increased comfort and maximum control
• Weight 1.6kgs

TECHNICAL SPECIFICATION OF DCV584L DUST EXTRACTOR

• FLEXVOLT Dust Extractor
• 54v/18v FLEXVOLT System
• 240v mains power
• Can also be powered by slide fit 18v DeWALT Batteries
• L-Class filter traps 99.97% of dust down to 0.3 microns
• Wet and Dry function uses same filter
• DeWALT air lock connectors
• 2mtr hose
• On board storage
• Additional nozzles and accessories
• Blower function
• Easy wrap cord management system
• Ergonomic carry handle

TECHNICAL SPECIFICATION OF 18V DEWALT DCE530N HEAT GUN

• 18v Heat Gun
• 990 degrees F (532 degrees C) max temperature
• Can operate for up to 42 minutes on low setting with 5Ah battery
• 7cfm airflow
• Lock-on button for hands-free usage
• Lock-off trigger to engage manual operation
• LED worklight built into the base of the tool
• Includes 2 nozzles

TECHNICAL SPECIFICATION OF 18V DEWALT DCGG571 GREASE GUN

• 18v Grease Gun
• Output pressure 690 bar (10000psi)
• Feed rate 147g/min
• Grease type up to NLGI 2
• Grease capacity bulk 453g
• Grease capacity cartridge 400g
• Hose length 1mtr
• Purge valve
• Pump filter screen
• Bright LED work light
• Can be bulk filled suction or pump
• Can be used with standard 400g grease cartridges
• Shoulder strap
• DeWALT kitbox
• Size h x l 230mm x 390mm
• Weight 3.7kgs

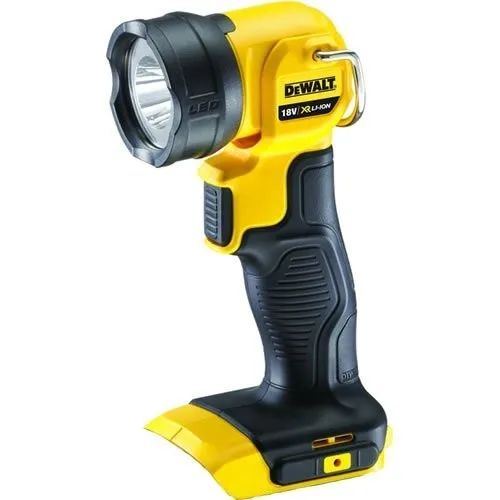

TECHNICAL SPECIFICATION OF 18V DEWALT DCL050 LED TORCH

• 18v LED Torch
• LED bulb
• Variable light settings maximum brightness or extended run-time
• Light output 250lms to 500lms
• Up to 10hrs run-time
• 9 position articulated lamp head
• Extendable hanging hook
• Protection class IP54
• Size h x l 345mm x 95mm
• Weight 0.6kgs

TECHNICAL SPECIFICATION OF 18V DEWALT DCC018 INFLATOR

• 18v Inflator
• Durable and very easy to use
• High pressure output up to 0.35ltr/min – 6.2 BAR. 0.6ltr/min – 2 BAR
• Power sources 12v or 18v
• 240v mains power adaptor available as an optional extra
• 12v vehicle adaptor
• 3 piece accessory kit
• Dual display target pressure and actual pressure
• Maximum pressure 11 BAR
• Automatic shut-off preventing over inflation
• Unit of pressure bar. KpA and PSI
• Digital gauge display
• Gauge accuracy +/- 0.15 BAR
• Bright built-in LED light
• Weight 3kgs

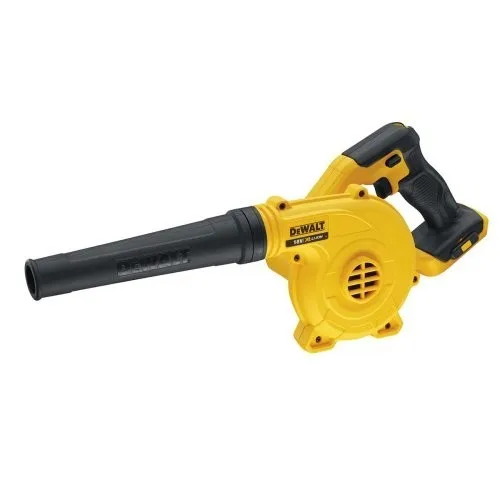

TECHNICAL SPECIFICATION OF 18V DEWALT DCV100 BLOWER

• 18v Blower
• Power output 265w
• Fan speed 18000rpm
• Air speed 80mtr/sec
• Air throughput 2.8mtr3/min
• Variable speed slider
• Variable speed trigger
• Lock-on switch
• Supplied with round nozzle. extension. inflator and deflater attachments
• Length 510mm
• Weight 1.3kgs

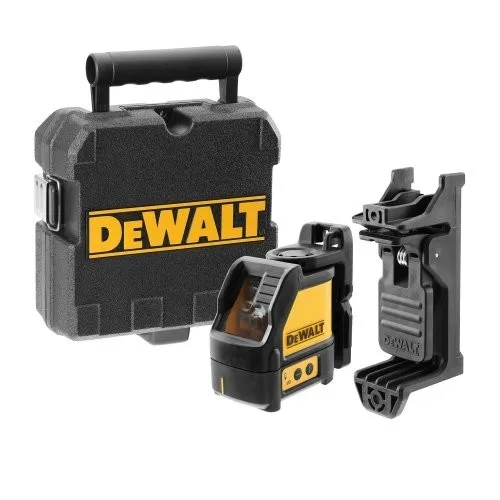

TECHNICAL SPECIFICATION OF DW088CG GREEN CROSS LINE LASER

• x2 clear green laser lines
• Horizontal and vertical layout applications
• +/- 0.3mm per mtr accuracy
• Indoor visibility 20mtr
• 4 degrees self levelling range
• Full time pulse mode for use with DE0892G detector 50mtr range
• Patented integrated magnetic base for easy and quick mounting
• 1/4 thread for tripod use
• Tough overmould housing
• 1mtr drop rating
• x3 AAA batteries plus battery life indicator
• IP54 water and dust resistant
• Wall bracket
• Carry case
• Size w x l x h 60mm x 110mm x 115mm
• Weight 0.5kgs

TECHNICAL SPECIFICATION OF DEWALT DWST83293-1 TOUGHSYSTEM BOX

• Size w x h x 555mm x 165mm
• High performance weather seal
• Easy-close metal wire front latches
• Auto stacking latches
• Half module compatibility
• Wider stronger handles
• Metal reinforced padlock eye
• Name panel insert
• Increased depth from 150mm to 165mm
• 2 removable large organiser cups with internal dividers and clear covers
• Backwards compatible with TOUGHSYSTEM 1

TECHNICAL SPECIFICATION OF DEWALT DWST83294-1 TOUGHSYSTEM DS300 BOX

• High performance seal dust and water tight
• Auto stacking latches
• Easy close metal front latches
• Half module compatibility
• Wider stronger handles
• Tracker ready
• Reinforced padlock eye
• Name panel insert
• Size h x w 310mm x 555mm

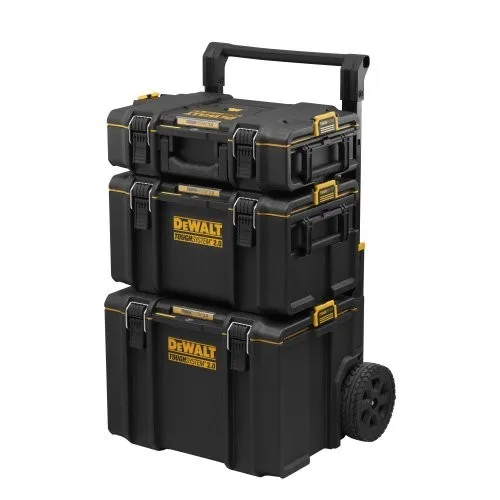

TECHNICAL SPECIFICATION OF DEWALT DWST83295-1 MOBILE STORAGE BOX 2.0

• 20% increase in storage capacity from TOUGHSYSTEM 1.0
• Detachable handle for convenient easy storage
• High quality 200mm durable Pu Wheels
• IP65 high performance built in lid seal dust and water jet tight to combat severe weather
• Easy close metal wire front latches one hand action
• Auto stacking latches quick easy module connection
• Wider stronger handles gives the trade safe comfortable use
• Half module compatibility
• DeWALT internal fixing point for a DeWALT tracker
• Reinforced padlock eye
• Name plate insert for easy identification
• Size l x w x h 555mm x 370mm x 685mm
• Safe load capacity 70kgs
• Weight 6kgs

TECHNICAL SPECIFICATION OF DWST1-70703 DEWALT TSTAK II POWER TOOL BOXES

• Flexible. stackable Mix and Match platform which allows different combinations
• For Power Tool storage including pre cut foam ensuring good protection for your power tools
• Stackable: All units can stack one on top of the other
• Durable side latches to ensure units are fixed
• Flat top including pre cut foam
• Bi material handle on top of each unit to ensure easy and comfortable lifting
• Innovative design: robust and rugged
• Useful volume 13.5ltr
• Wall thickness 2.8 to 3.0mm
• Also available as TSTAK COMBO
• Size w x d x h 440mm x 176mm x 330mm
